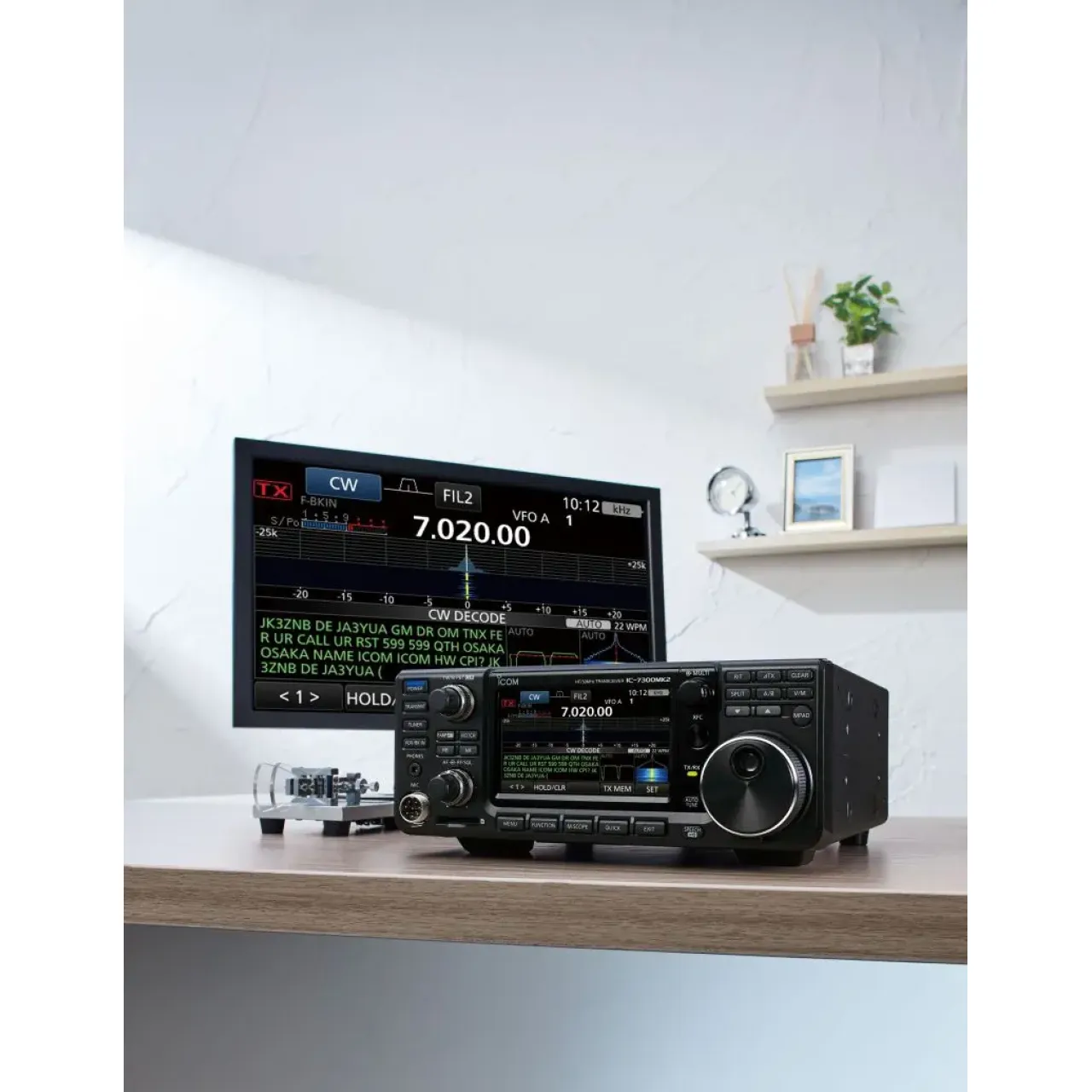

IC-7300MK2

Ham transceiver HF/50 MHz 100W, 70 MHz 50W, 1,8-30MHz, 50-52MHz, updated version of IC-7300 with RMDR/phase noise characteristics improved, lower heat generation, reduced curr. consumption, CW decoder function, new connections: HDMI, USB-C, Ethernet and RX antenna port. 100 channels, touch screen LCD TFT display, keypad, all modes, integrated antenna tunner, control, IF output, voice recording with SC card. Any modification to the equipment not carried out by the ICOM France after-sales service will result in exclusion from the manufacturer's warranty.

Visuel non disponible
  • IC-7300MK2 Fixed stations / HF - ICOM

    Cliquez pour agrandir

  • IC-7300MK2 Fixed stations / HF - ICOM

    Cliquez pour agrandir

  • IC-7300MK2 Fixed stations / HF - ICOM

    Cliquez pour agrandir

Les + Produits

  • Updated version of the IC-7300 with RMDR and phase noise characteristics improved, lower heat generation and reduced current consumption, CW Decoder function
  • New connectors: HDMI external display port, Ethernet LAN port, USB Type-C port and RX antenna port
  • First direct conversion device in for ham radios
  • Unprecedented direct sampling system allowing an exceptional dynamic
  • High resolution real time spectrum analyzer
  • In-built Antenna coupler
  • No noise Transmitter (exclusive phase noise low figures)
  • "4,3"" LCD touch screen"
  • 101 memory
Demande d'informations
Image Accessoires - ICOM

HM-219

Hand microphone speaker 8-pins plug

Visuel non disponible

NOTICE MOBILES - FIXES

French instruction manual

Couplers

Image 0 - ICOM

AH-730

1.8-54MHz automatic antenna tuner, max. input: 150 W PEP, 100 W continuous. Controller cable (10 m, 32.8 ft) included

Microphones

Image 0 - ICOM

HM-219

Hand microphone speaker 8-pins plug

Image 1 - ICOM

SM-30

Compact 8-pin desktop electret table microphone

Image 2 - ICOM

SM-50

8-pin destock microphone with [UP/DOWN] switches and a low cut function

Covers, fasteners and cradles

Image 0 - ICOM

LC-COVER7300

Black synthetic leather case, rear panel part opens to cover the radio with cable connected. Embroidery of ICOM logo in red and white and "IC-7300" in white. Designed in Japan

Image 1 - ICOM

MB-118

Bracket

Image 2 - ICOM

MB-123

Cords

Image 0 - ICOM

OPC-2321

Control cable, 6m, for use with AH-740

Visuel non disponible

OPC-420

Control cable 10m for AH-4

Image 2 - ICOM

OPC-599

13 pins cable connection adapter

Chargers and alimentations

Image 0 - ICOM

PS-SM1235

30A 13,8V power supply

Others

Image 0 - ICOM

RC-28

USB remote encoder

Speakers

Image 0 - ICOM

SP-33

5W 8 Ohms external speaker for base. match large HF transceivers, flat frequency response, wooden case, dimensions: 140 (W)× 165.5 (H)× 125.5 (D) mm

Image 1 - ICOM

SP-35

Black external speaker 5W 4Ohms. Modern and compact designed.

Image 2 - ICOM

SP-35L

Black external speaker 5W 4Ohms. Modern and compact designed. Delivered with a 6m cable.

Image 3 - ICOM

SP-38

External speaker 5W, 8 Ohms

Image 4 - ICOM

SP-41

5W external speaker 4 audio filters 8 ohms

doc-IC-7300MK2_A4-fr.pdf - IC-7300MK2 pre-release information
not-IC-7300MK2-Basic-fr.pdf

Nous informons notre aimable clientèle que les notices d’utilisation sont fournies gracieusement avec les équipements achetés au sein de notre réseau agréé.
En revanche, pour tout produit qui n’a pas été acquis auprès de nos distributeurs, toute demande de notice est susceptible de faire l’objet d’une facturation dont le montant varie en fonction de l’équipement concerné.
