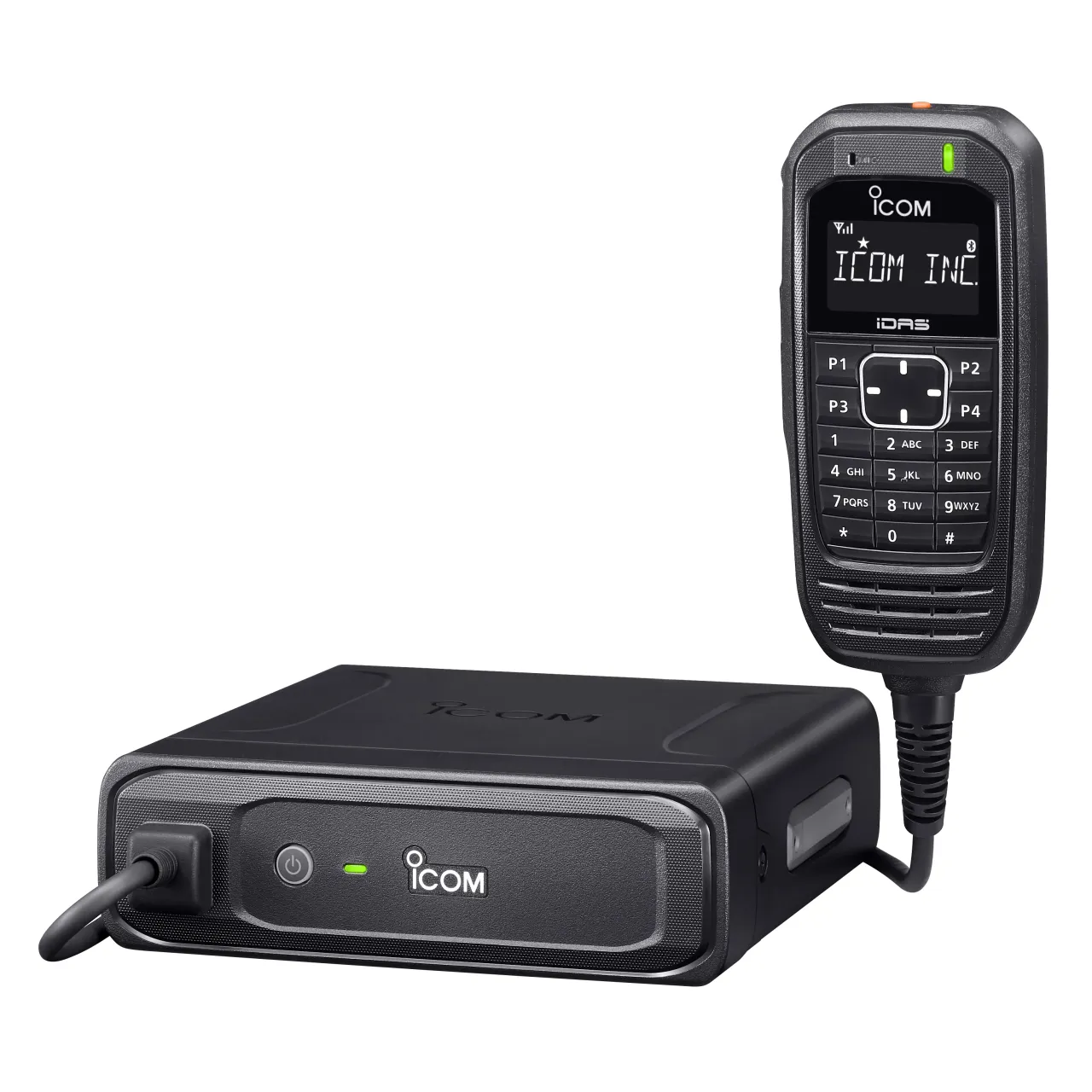

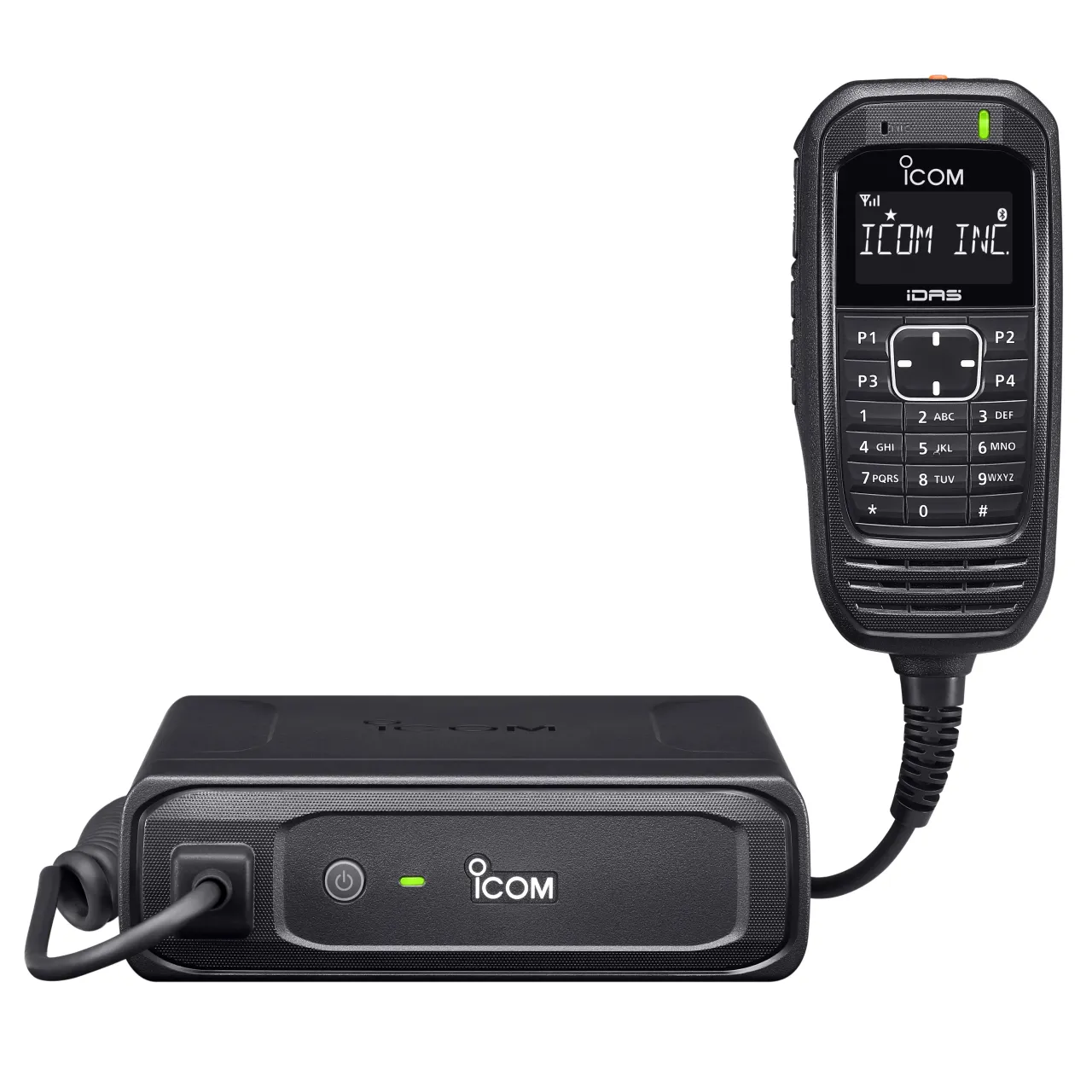

IC-F5330D SERIE

Digital mobile transceiver 25W, NXDN™, 128 channels, 8 zones, consists of the main RF unit (Black-box type) and a IPX4 remote Commandmic™ connected using a Cat 5e LAN cable. NXDN type-D single-site trunking capacity. DTMF autodial memories capability. Commandmic™ powered from the main unit through PoE. 5-tone, CTCSS/DTCS signalling capabilities. Supplied with DC power cable

  • IC-F5330D SERIE  - ICOM

    Cliquez pour agrandir

  • IC-F5330D SERIE  - ICOM

    Cliquez pour agrandir

  • IC-F5330D SERIE  - ICOM

    Cliquez pour agrandir

  • IC-F5330D SERIE  - ICOM

    Cliquez pour agrandir

  • IC-F5330D SERIE  - ICOM

    Cliquez pour agrandir

Les + Produits

  • Mixed analog/digital communications (NXDN™ only)
  • Trunk capacity in single-site NXDN™ mode
  • Two-box style configuration: a black-box main unit and a Commandmic™

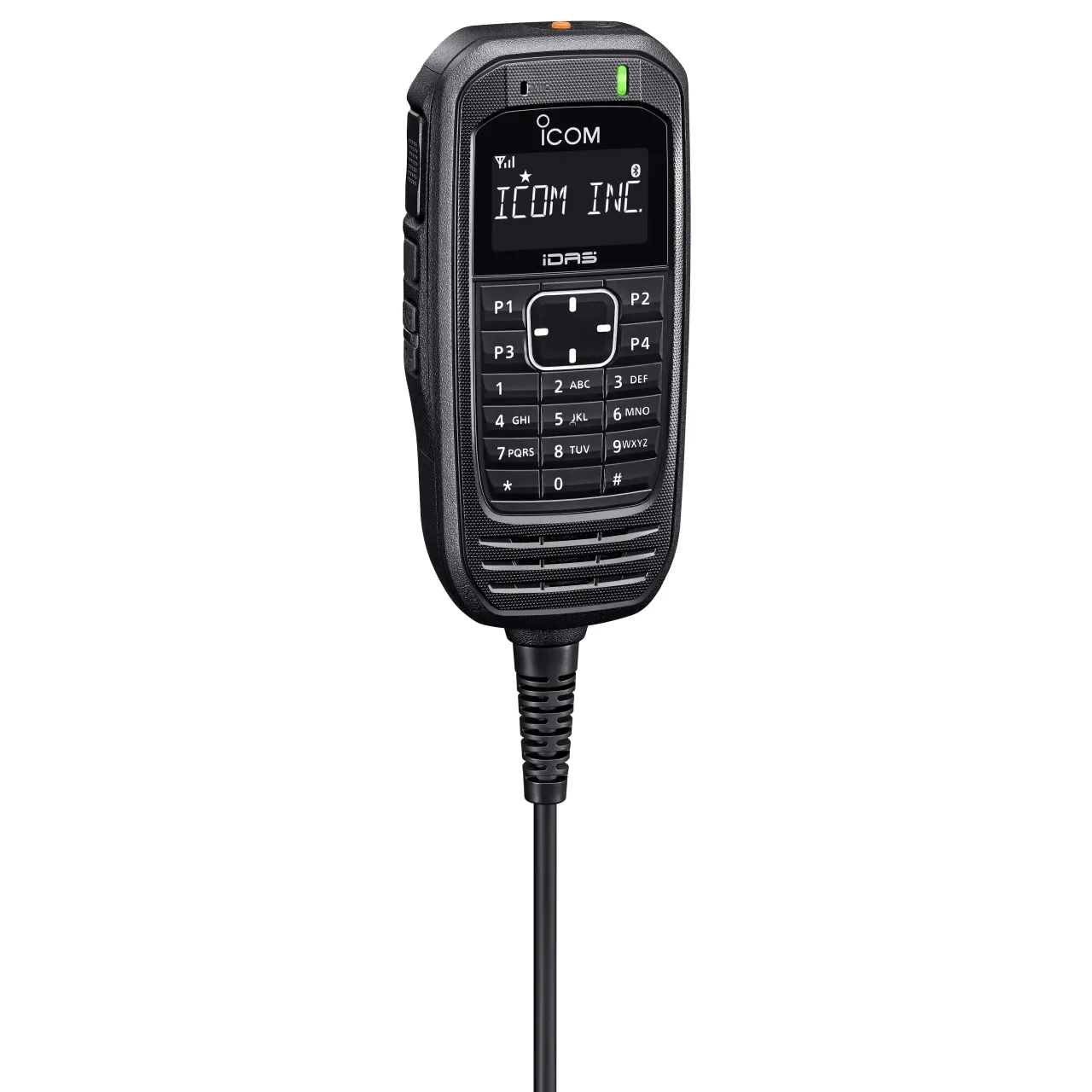

  • Remote microphone connected to the main Unit with the Ethernet cable and powered from the main unit by PoE
  • Flexible installation reducing the RF coaxcabling distance for optimum sensitivity and transmit power
  • Integrated Bluetooth in the controller
  • Single UHF frequency split covering 120MHz bandwidth of 400-520MHz
  • VSWR detection function
  • VE-PG4 connection (option)

Découvrez tous les appareils de la série

IC-F5330D

Mobile VHF 136-174MHz 25W, 128CN, consists of the main RF unit Black-box type and a commandmic™. Supplied with DC power cable, microphone and its Ethernet cable (6.2m), microphone hanger and mouting bracket.

IC-F6330D

Mobile UHF 400-520MHz 25W, 128CN, consists of the main RF unit Black-box type and a commandmic™. Supplied with DC power cable, microphone and its Ethernet cable (6.2m), microphone hanger and mouting bracket.

Visuel non disponible

OPC-2479

DC power cable 10A, 3m lengh for 25 W version

Covers, fasteners and cradles

Visuel non disponible

MB-F5130

DIN mounting bracket for IC-F5130D/6130D and IC-F5330D/6330D mobile radios

Cords

Image 0 - ICOM

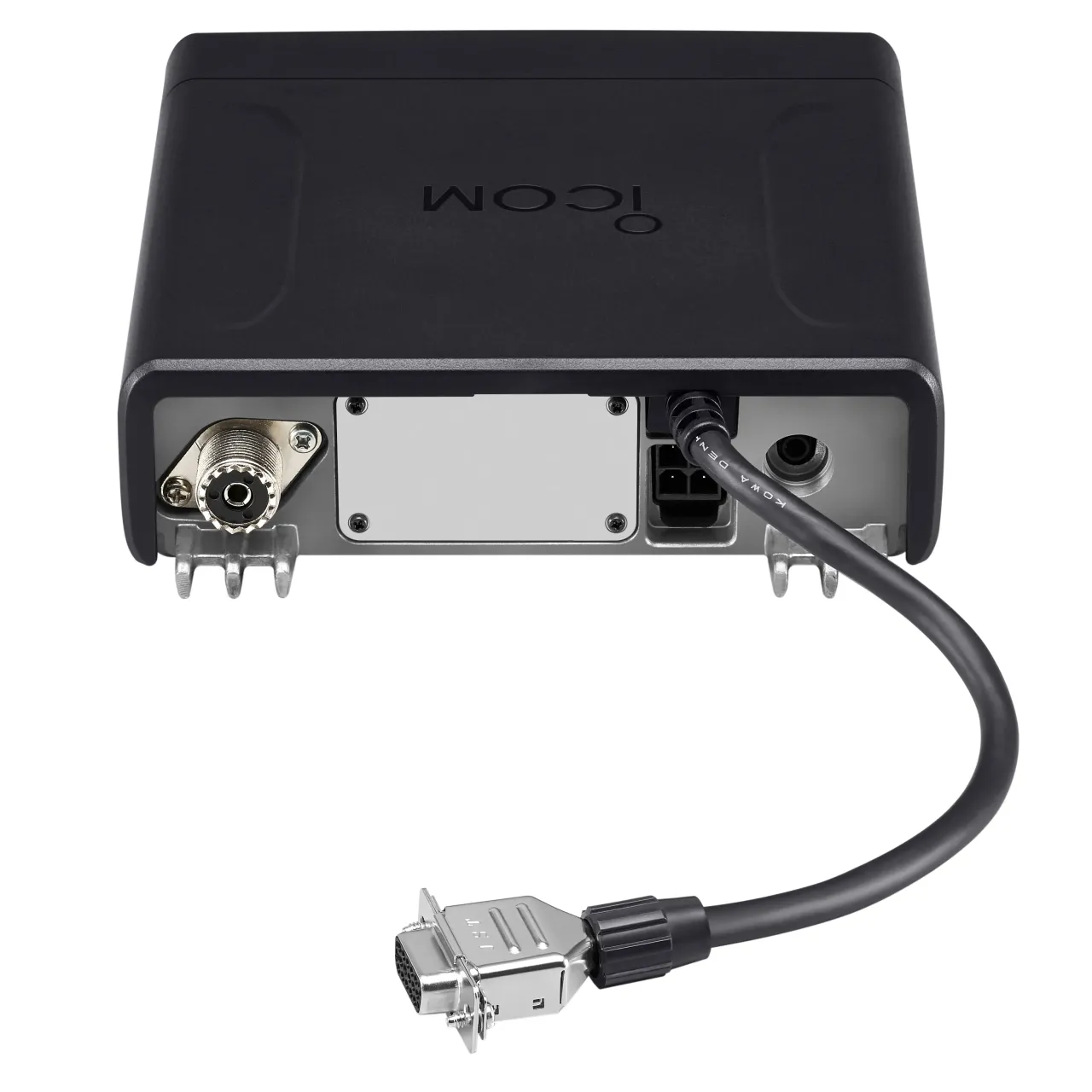

OPC-1939

D-SUB 15-pin cable

Image 1 - ICOM

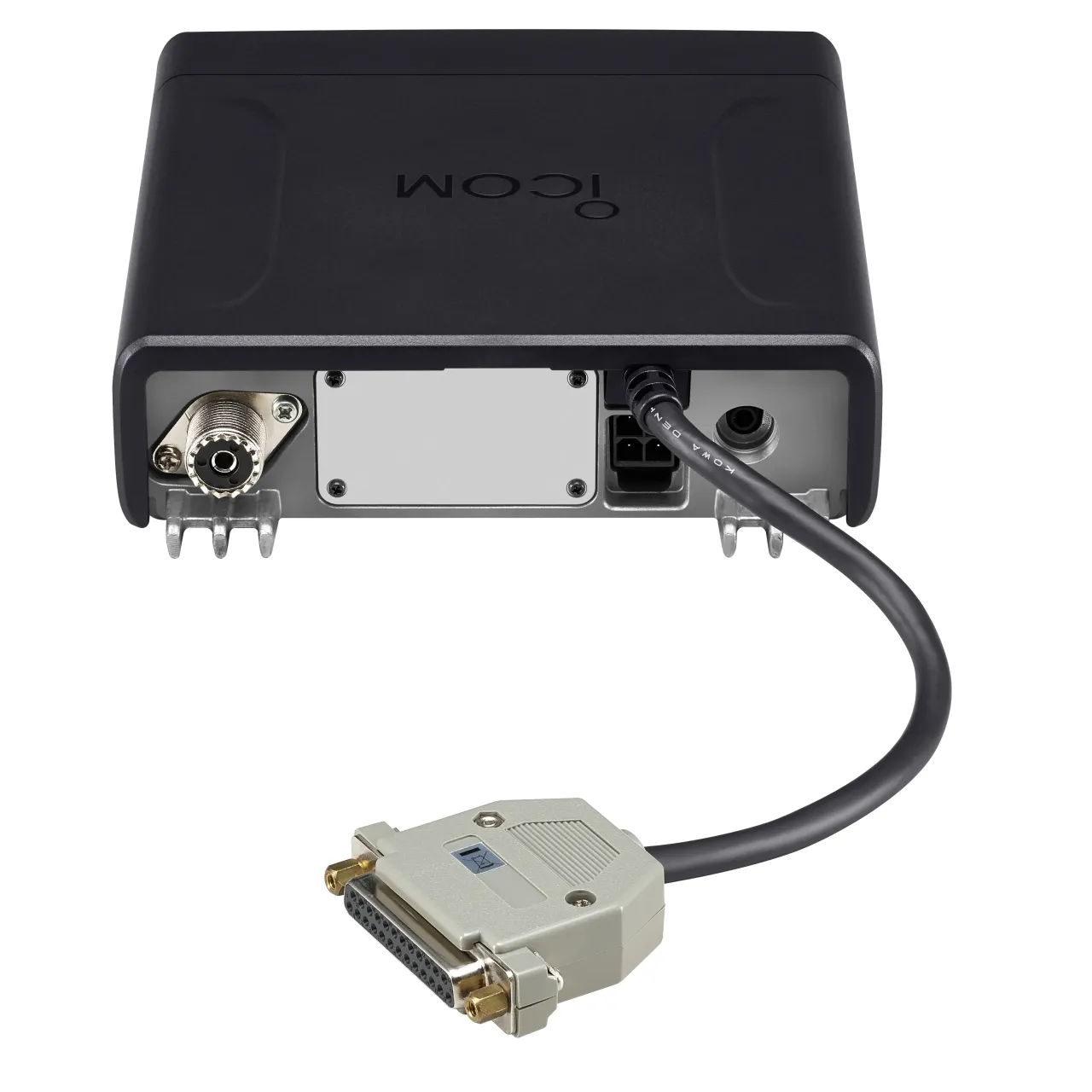

OPC-2078

D-Sub cable 25 pins

Visuel non disponible

OPC-2478

DC power cable 20A, 3m lengh for 45/50 W version

Visuel non disponible

OPC-2479

DC power cable 10A, 3m lengh for 25 W version

System

OPC-IF2020

OPC-IF2020

10 Port isolated I/O interface, radio-monitored with status display (LED) RS-232/TTL compatible interface Din rail mounting or wall mounted

Speakers

Image 0 - ICOM

SP-30

External speaker, 20W 4Ohms 2.6m cable

Image 1 - ICOM

SP-35

Black external speaker 5W 4Ohms. Modern and compact designed.

Image 2 - ICOM

SP-35L

Black external speaker 5W 4Ohms. Modern and compact designed. Delivered with a 6m cable.
