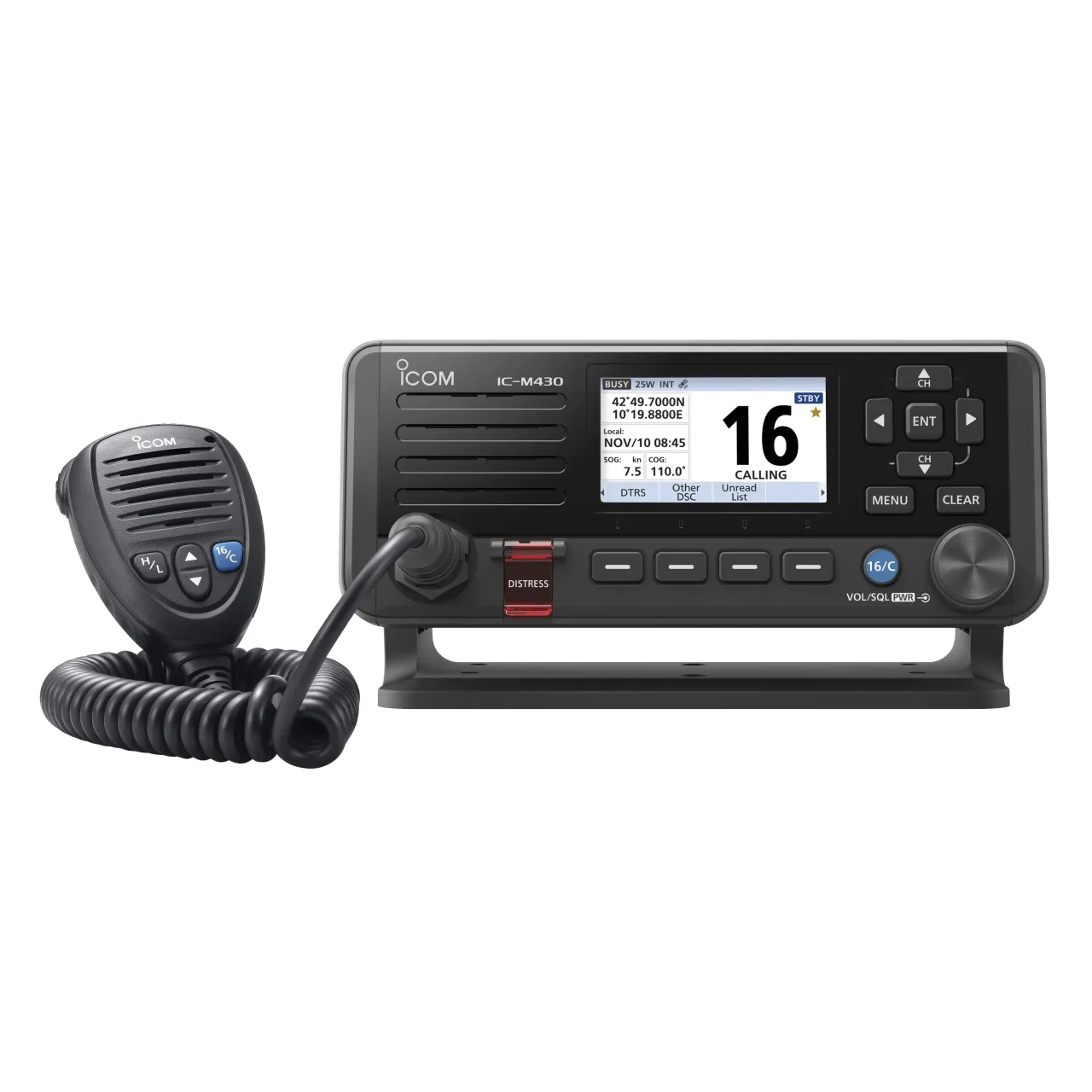

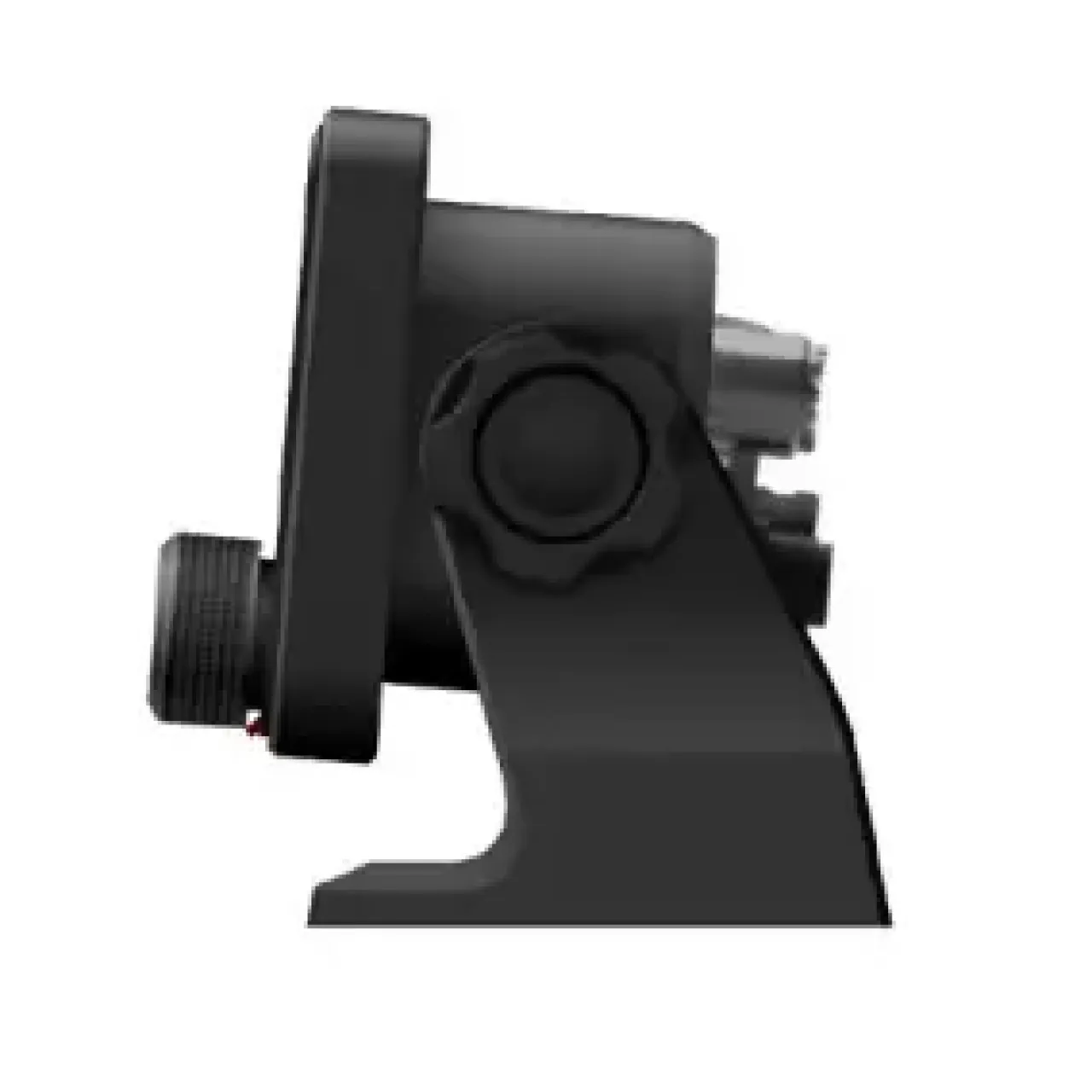

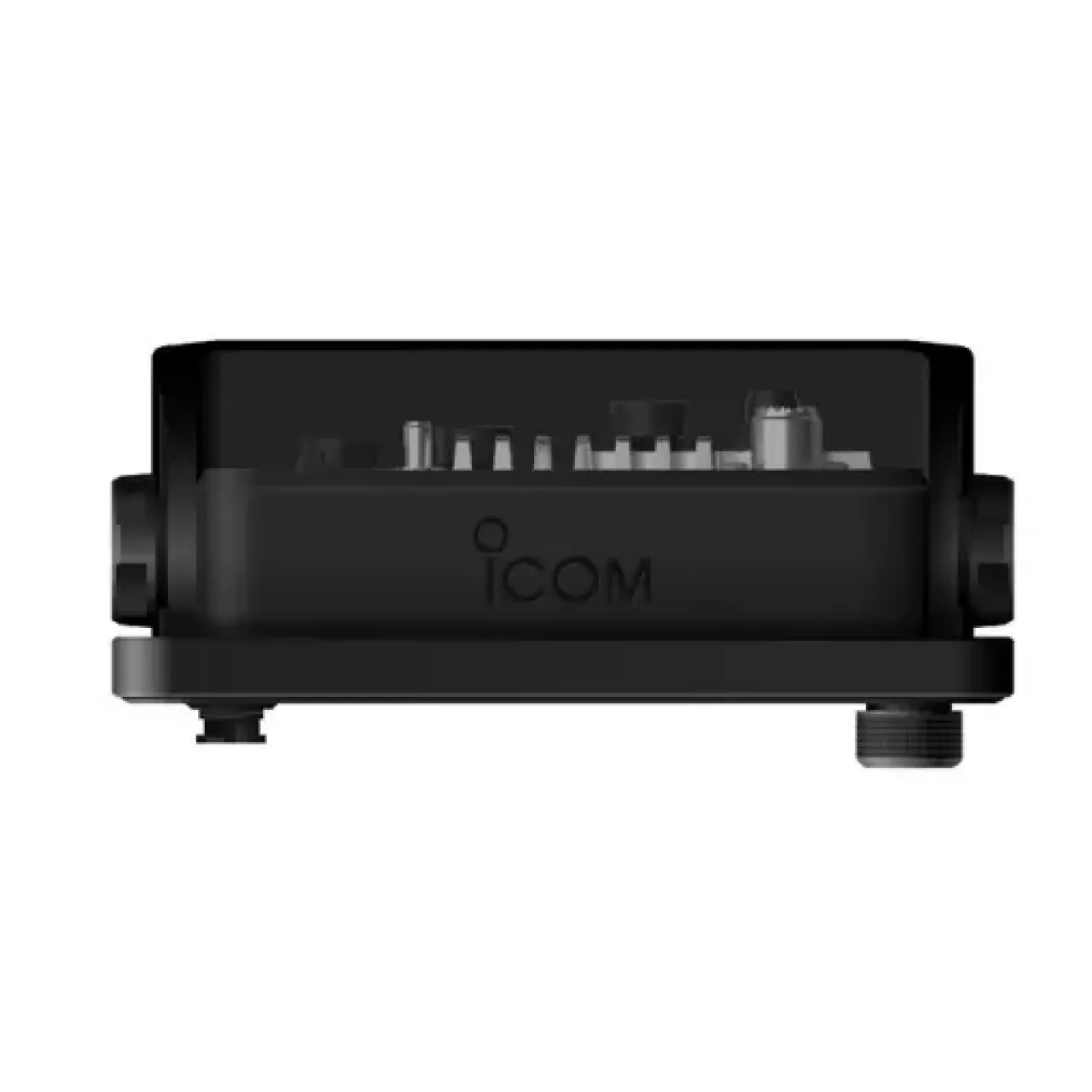

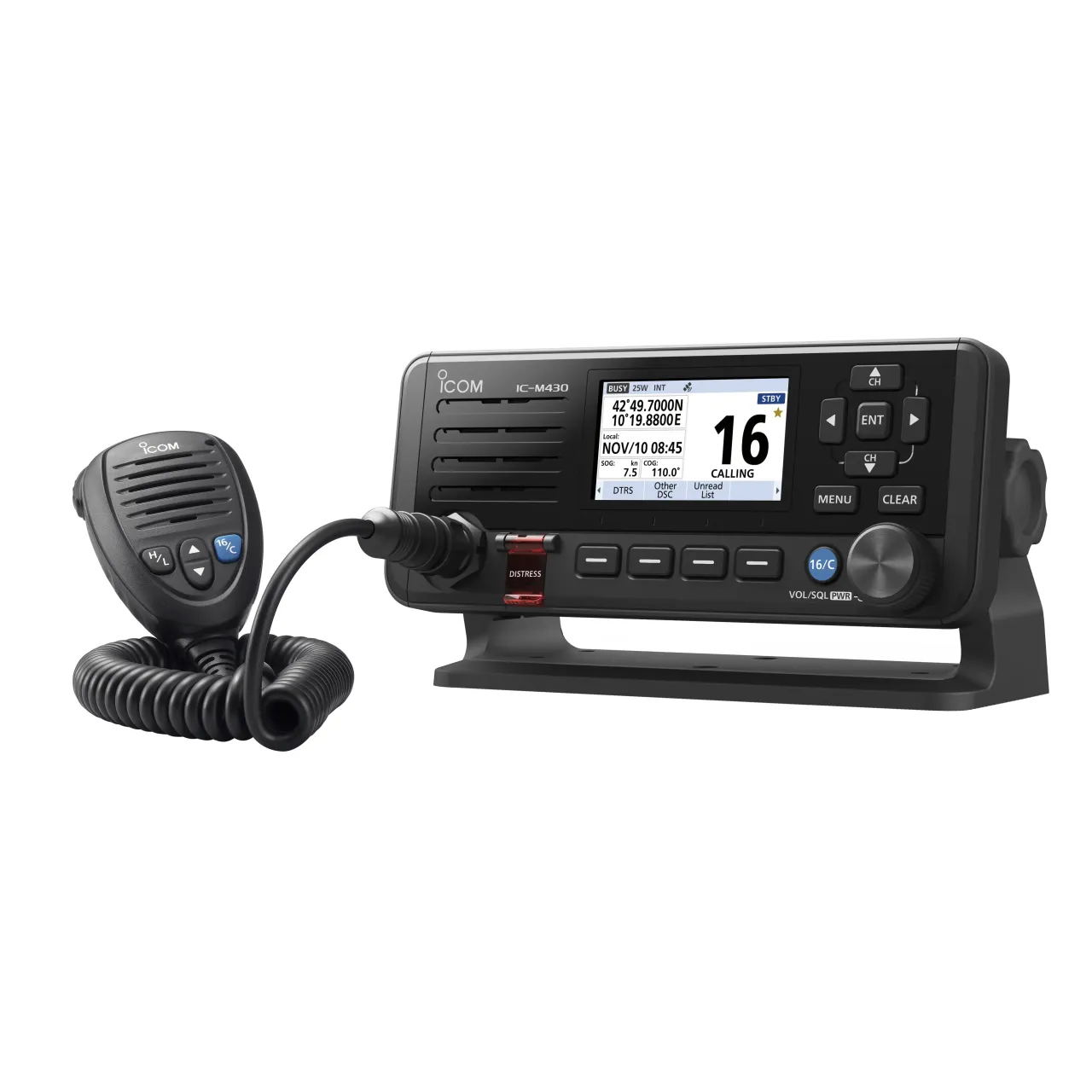

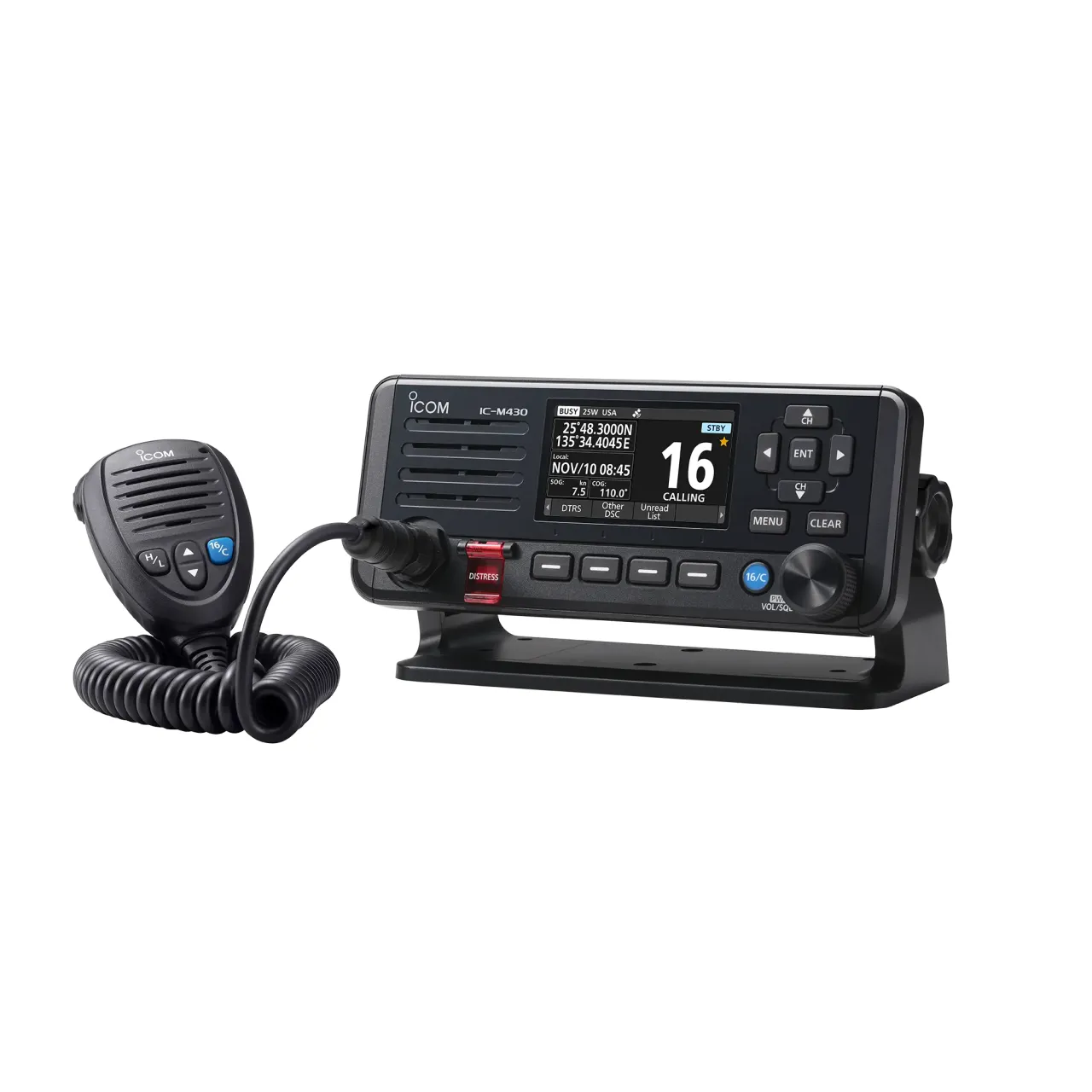

IC-M430E

Fixed marine VHF 156-163.425 MHz, 25W, built-in GNSS (GPS) with antenna and SMA connector for external antenna, Class D DSC, ultra compact size, IPX7 protection (30min at 1m depth), color LCD with 3 display color modes (day/night/dark), NMEA0183-HS and NMEA2000 ports, one-way hailer, fog horn, active noise canceller, microphone connector and Commandmic connector on the back. MMSI number-controlled DSC mute, power-saving mode, DC voltage indication, VHF antenna misconnection detection. Black. Supplied with speaker microphone and microphone hanger, mounting bracket kit, flush mount gasket (MBA-18) for easier panel installation and DC power cable.

Visuel non disponible
  • IC-M430E Fixes - ICOM

    Cliquez pour agrandir

  • IC-M430E Fixes - ICOM

    Cliquez pour agrandir

  • IC-M430E Fixes - ICOM

    Cliquez pour agrandir

  • IC-M430E Fixes - ICOM

    Cliquez pour agrandir

  • IC-M430E Fixes - ICOM

    Cliquez pour agrandir

  • IC-M430E Fixes - ICOM

    Cliquez pour agrandir

Les + Produits

  • Ultra-compact dimensions ideal for all boats
  • Internally-integrated GPS with internal antenna andfor external antenna port
  • Color LCD with 3 display color modes (day/night/dark)
  • Same embedding dimensions as the IC-M423GE
  • MBA-18 flush mounting gasket for easier panel mount installation
  • Microphone connector and commandmic connector on the back (Optionnal commandmic HM-195GB)
  • NMEA0183-HS and NMEA2000 connectivity
  • Fog horn and one-way hailer
  • Compatible with MA-510TR and MA-600TRBB AIS transponders
Demande d'informations
Image Accessoires - ICOM

HM-205RB

Speaker Microphone, black, IPX8, 8 pin waterproof connector, cable length 43 mm

2000x1334px

OPC-2519

DC 12V power cable

Image Accessoires - ICOM

UX-241

External ultra-low profile miniature magnet or adhesive mounted GPS-GLONASS-Galileo Antenna patch (44x35x14.5mm), IP67, supplied with 5m RG-174 cable, SMA connector.

Antennas

Image 0 - ICOM

AH-BA00067

VHF Antenna 156-163MHz, 1,50mt, 3dBi, supplied with nylon ferrule, 5mt cable and PL-59

Image 1 - ICOM

AH-BA00247

Antenna VHF mt 1,5 (5ft) - 3db - chrome plated ferrule - mt 6,6 RG58 MIL C17/28

Image 2 - ICOM

AH-BA106-2

Image 3 - ICOM

AH-BA15115

VHF antenna 156-163Mhz 6dBi 2,50m PL connector

Image 4 - ICOM

AH-BA15209

Image 5 - ICOM

AH-BA2011

Image 6 - ICOM

AH-BA20309

VHF antenna 156-162MHz, 0 dBi, 50Ohms, 50W, 0,25mt black rubber whip, with PL connector deck mount. Unscrewable antenna.

Image 7 - ICOM

AH-CXL2-1LW-L

VHF Universal Antenna 144-165MHz base for stations or relais (2,80m)

Image 8 - ICOM

AH-CXL2-2C

VHF Antenna 144-175MHz broadband base for stations or relais (2,80m)

Image 9 - ICOM

AH-CXL2-3LW-LM

VHF Antenna 153-162MHz 3dB for fixed stations or relais (2,80m)

Image 10 - ICOM

UX-241

External ultra-low profile miniature magnet or adhesive mounted GPS-GLONASS-Galileo Antenna patch (44x35x14.5mm), IP67, supplied with 5m RG-174 cable, SMA connector.

Microphones

Image 0 - ICOM

HM-195GB

Remote control microphone 10-pin IPX7 protection. Delivered with mounting bracket and 6,1m connecting cable, black

Image 1 - ICOM

HM-195GW

Remote control microphone 10-pin IPX7 protection. Delivered with mounting bracket and 6,1m connecting cable, white

Image 2 - ICOM

HM-205RB

Speaker Microphone, black, IPX8, 8 pin waterproof connector, cable length 43 mm

Others

Image 0 - ICOM

MB-BA016

Image 1 - ICOM

MB-BA15533

Image 2 - ICOM

MB-BA15650

Image 3 - ICOM

MB-BA197

Image 4 - ICOM

MBZ-3

Front panel cover made of thick, flexible rubber with the ICOM logo, specially designed to protect the front panel of the IC-M430E fixed-mount marine VHF radio. A side grip allows for easy removal. Approx. dimensions: 20.8 × 8.4 × 2.3 cm.

Covers, fasteners and cradles

Image 0 - ICOM

MB-BA15

Image 1 - ICOM

MB-BA20

Image 2 - ICOM

MB-BA6202

Cords

Image 0 - ICOM

OPC-1000

Extension 6m + support micro + stainless steel platinum for HM-134B

Image 1 - ICOM

OPC-1541

Extention cord (6,1m)

2000x1334px

OPC-2519

DC 12V power cable

Image 3 - ICOM

OPC-2522L

L-type conversion adapter cable for HM-205RB. Cable length 17cm.

Image 4 - ICOM

OPC-2523L

L-type conversion adapter cable for HM-195 and HM-229. Cable length 15cm.

Image 5 - ICOM

OPC-478UD

Programming cable for LS-type connector radios, 3.5mm mini plug and OPC-1637B USB cable. Can be used alone without an intermediary cable

Image 6 - ICOM

OPC-980

Cloning cordon

Image 7 - ICOM

OPC-BA9018

Visuel non disponible

OPC-IFMA500TR506

Visuel non disponible

OPC-IFMA510TR

Chargers and alimentations

Image 0 - ICOM

PS-ADF1000

110/220V 9A power supply with back up battery function

Image 1 - ICOM

PS-ADUNI

110/220V power supply with back up battery function for all mobiles. Supplied with power supply, screws and crimp connectors.

Image 2 - ICOM

PS-PV12I

Converter 24-12V isolated mass 12A, continuous charge 12A and intermittent charge 18A

Image 3 - ICOM

PS-PV24

Converter 24-12V isolated mass 24A, continuous charge 24A and intermittent charge 30A

Image 4 - ICOM

PS-SM1212

10A 13,8 V power supply

Image 5 - ICOM

PS-SM1225

23A 13,8V power supply

Image 6 - ICOM

PS-SM1235

30A 13,8V power supply

Speakers

Image 0 - ICOM

SP-37

External horn speaker 30W, 4 OHMS, white

Image 1 - ICOM

SP-MAR36
